The 100-Point Architectural Drawing Review Checklist

Architectural drawings are the foundation of every construction project. A single omission, coordination error, or code violation can lead to costly rework, delays, contractual disputes, and safety risks.

That is why architectural submittal review is much more than a procedural approval. It is a quality gate that protects technical integrity, code compliance, coordination, and constructability before drawings are released for field execution.

This guide translates the 100-point architectural drawing review checklist into ten focused review agents. Each agent owns a repeatable set of checkpoints that can be assigned to specialists, audited by document control teams, or automated inside a construction intelligence workflow.

Why a 100-Point Review Framework Matters

Traditional drawing reviews often depend on individual reviewer memory. That creates inconsistent comments, missed coordination issues, and subjective approval decisions. A structured checklist gives teams a common review language.

The framework helps project teams:

• Confirm drawing package completeness before technical review begins.
• Separate document control issues from design and constructability issues.
• Track review responsibility by discipline, package, and checkpoint.
• Identify automatic rejection conditions before they reach site teams.
• Turn submittal review into a measurable, repeatable QA process.

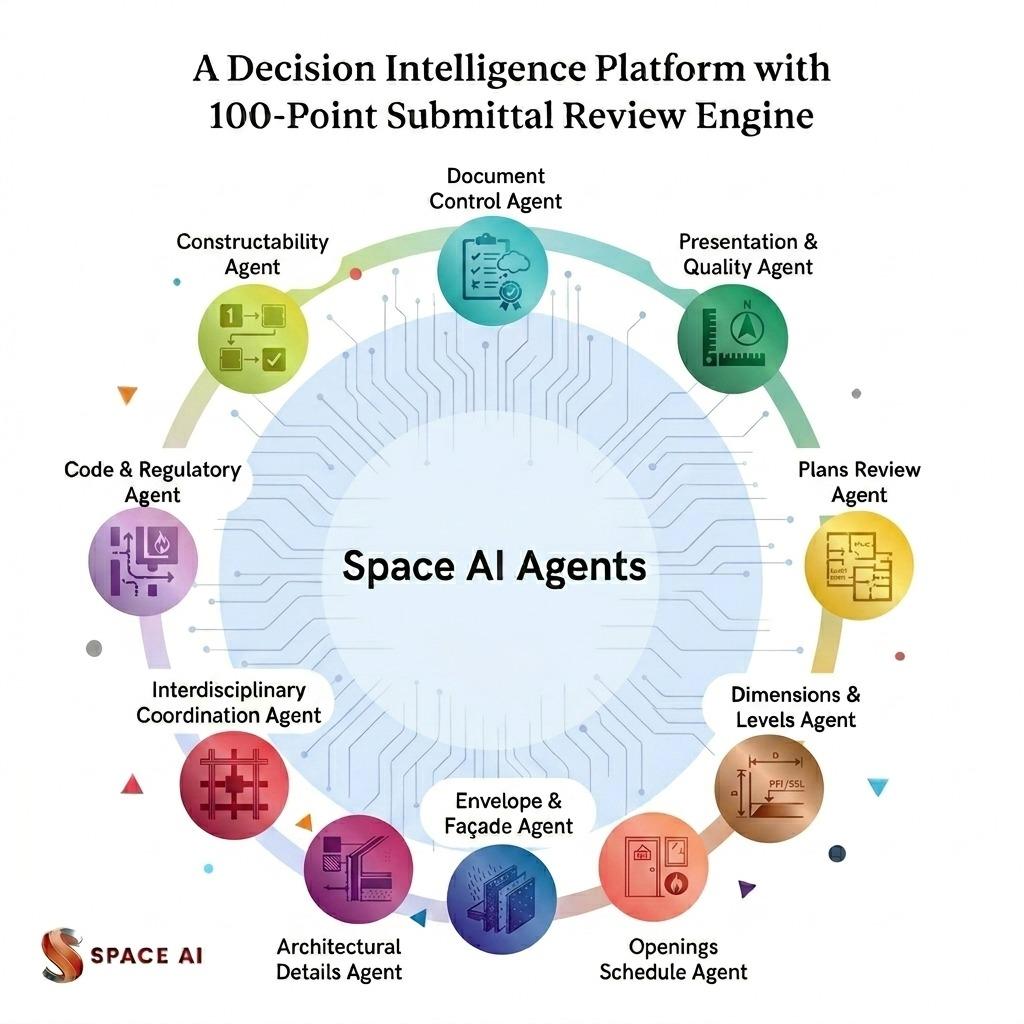

The 10 Submittal Review Agents

The PDF guide organizes architectural review into ten major categories. Each category contains ten checkpoints, creating a complete 100-point review structure.

Agent 1: Document Control

Document control is the first line of defense. If the package cannot be trusted as the latest, complete, and formally issued record, the technical review starts on unstable ground.

• Verify correct project title and unique drawing title block metadata.
• Validate that the latest revision number corresponds with design progression.
• Ensure the issue date matches the formal schedule log.
• Confirm revision history is detailed and modification clouds are explicitly indicated.
• Check drawing status tags are clearly defined, such as For Approval, IFC, or As-Built.
• Cross-examine the submission against the transmittal form and document control register.
• Verify consistency with the master sheet index map.
• Confirm structural, MEP, and specialist consultant detail links match cross-references.
• Verify correct professional seals, signatures, and organizational certifications.
• Check template scales and paper sizing standards conform to submittal requirements.

Agent 2: Drawing Quality and Presentation

The drawing package must be readable and field-ready. Presentation issues are not cosmetic when they affect coordination, installation, or inspection.

• Verify drawing scales are appropriate for the level of detail presented.
• Confirm the north arrow is clearly provided and correctly oriented across all plans.
• Verify legends and material or architectural symbols are complete and unified.
• Ensure text font, sizing, and contrast are readable for field personnel.
• Confirm line weights consistently separate cut elements from background items.
• Cross-check detail references and callout markers against valid destination sheets.
• Eliminate drafting anomalies, overlapping text entities, and unpurged geometric artifacts.
• Check abbreviation usage against standard architectural glossaries.
• Verify metric or imperial multi-unit annotations are uniform across the pack.
• Confirm boundary lines, setbacks, and limits of work are precisely displayed.

Agent 3: Architectural Plans Review

Plans are the operational base of the drawing set. The plans review agent checks whether spaces, walls, tags, finishes, levels, and grids tell a complete and coordinated story.

• Confirm floor plans exist for all levels, including foundations, podiums, and roofs.
• Validate room names and unique numbering schema across every zone.
• Verify wall types and structural partition references match specification charts.
• Check door and window tags coordinate with schedules.
• Cross-reference floor finish materials and transition thresholds on plans.
• Verify reflected ceiling plan references match primary spatial arrangements.
• Confirm key levels, benchmark datums, and primary structural gridlines.
• Check localized programmatic requirements such as equipment layouts and special storage.
• Ensure demising walls and acoustic rating lines are continuous and properly called out.
• Confirm major structural shear walls and column orientations align with structural inputs.

Agent 4: Dimensions and Levels

Dimension and level errors are among the fastest ways to create field rework. This agent verifies the geometry of the project before installation teams inherit the risk.

• Verify overall building footprint dimensions and exterior boundary offsets.
• Confirm internal room clearances and finish-to-finish masonry dimensions.
• Check rough structural opening sizes for doors and window frame insertions.
• Ensure corridor widths meet functional and operational egress requirements.
• Verify stair geometry, including tread runs, risers, and landing dimensions.
• Confirm finished floor levels and structural slab levels on all stories.
• Verify high-point and low-point ceiling levels across complex plenums.
• Check exterior threshold elevations to prevent moisture or water ingress.
• Confirm vertical clearances under beams or HVAC drops.
• Validate cumulative dimension strings against overall totals.

Agent 5: Door and Window Review

Openings affect egress, fire safety, accessibility, envelope performance, and procurement. This agent checks whether the schedules and plans can be executed without interpretation gaps.

• Audit door schedules for complete mapping against floor plans.
• Audit window schedules for precise dimension and location matches.
• Verify fire-rated door markers, seals, and compliance certificates match safety plans.
• Check door swing directions for functional operation and egress obstruction paths.
• Validate accessibility strike-side clearances and push/pull approach requirements.
• Cross-check hardware group codes and ironmongery schedule connections.
• Confirm performance glazing parameters, including U-value, SHGC, and acoustic thresholds.
• Verify safety impact glass installations in hazardous locations such as side-lites.
• Check window opening mechanisms, safety limiters, and maintenance constraints.
• Ensure louvers, frame depths, and sub-frame thermal breaks are defined.

Agent 6: Elevations, Sections, and Facade Review

The building envelope must coordinate architecture, structure, waterproofing, drainage, and planning constraints. This agent reviews vertical expression and envelope logic.

• Verify comprehensive exterior elevations are provided for all major orientations.
• Confirm overall building heights match planning envelopes and maximum datums.
• Check explicit architectural material callouts and surface finish codes.
• Ensure longitudinal and transverse sections pass through critical steps.
• Verify continuous weatherproofing barrier pathways and drainage overlaps.
• Confirm structural expansion joints run cleanly through the entire envelope.
• Check roof parapet terminations, flashing details, and coping slope designs.
• Ensure plan-to-elevation and plan-to-section markers are valid.
• Verify curtain wall spandrel locations align with internal slab edges.
• Check weep holes, panel joints, and ventilation cavities on rainscreen systems.

Agent 7: Architectural Details

Details determine whether the design intent can survive the realities of construction. This agent verifies interfaces, transitions, terminations, and assemblies.

• Verify detail drawings for door jambs, heads, and weather-sealed thresholds.
• Confirm window head, sill, and structural anchoring details are included.
• Check multilayered wall assemblies for thermal insulation and acoustic linings.
• Verify flooring material transitions use proper divider strips.
• Check ceiling framing, perimeter moldings, and light cove integration profiles.
• Verify wet area slope-to-drain details and recessed slab configurations.
• Confirm waterproofing membranes turn up walls at minimum specified heights.
• Check roof valley gutters, primary drains, and overflow scupper details.
• Verify floor and wall expansion joint covers match structural configurations.
• Ensure dissimilar metal interfaces use galvanic isolation.

Agent 8: Interdisciplinary Coordination Review

Architectural drawings do not stand alone. They must align with structural, MEP, civil, BIM, and site constraints. This agent searches for conflicts across discipline boundaries.

• Verify architectural grid coordinates align with structural designs.
• Check column sizes and profile rotations do not protrude into clear layouts.
• Confirm beam depths do not drop below clear headroom requirements.
• Verify major slab penetrations accommodate service routes.
• Check vertical service shafts provide required fire-rated volume capacity.
• Confirm ceiling spaces allow gravity drainage slopes and duct intersections.
• Verify heavy MEP equipment paths and maintenance clearances.
• Check builder's work openings are documented on structural sheets.
• Review automated BIM clash detection summaries for unresolved conflicts.
• Confirm external civil utilities match internal facility entry networks.

Agent 9: Code and Regulatory Compliance

Code review is not a late-stage formality. Egress, accessibility, fire separation, ventilation, and clearances must be visible in the drawings and defensible during review.

• Verify means of egress provide continuous, unobstructed exit paths.
• Confirm exit door aggregate widths satisfy occupant load calculations.
• Verify maximum dead-end and total travel distances stay within code limits.
• Check continuity of fire-barrier walls through floors and ceiling spaces.
• Confirm opening protectives match required envelope ratings.
• Verify accessible pathways connect public arrival zones to internal spaces.
• Check accessible bathroom dimensions include correct turning radii.
• Verify ramp slopes, landings, and handrail configurations conform to standards.
• Check minimum habitable area dimensions and ventilation ratios.
• Verify vertical headroom under soffits and projections.

Agent 10: Constructability and Site Readiness

The final review agent asks a practical question: can the site team actually build this as drawn, in the expected sequence, with the specified materials and tolerances?

• Verify complex details can be executed with standard site tools.
• Check material interfaces account for movement tolerances and sequencing.
• Ensure installation sequences protect completed finishes from later trades.
• Confirm manufacturing tolerances are explicitly provided.
• Verify long-term maintenance access for hidden valves and mechanical components.
• Confirm access panel locations in monolithic ceiling planes.
• Define mock-up parameters for complex curtain walls or finish systems.
• Verify material designations avoid generic or ambiguous nomenclature.
• Assess high-risk execution zones such as basements, intersections, and flashing.
• Confirm seasonal conditions or curing timelines do not invalidate specifications.

Critical Hold Points: Automatic Rejection Criteria

The PDF guide defines code-red conditions that should trigger immediate rejection regardless of the total checklist score. These are not minor redlines. They are fundamental risk conditions that require correction before approval can continue.

• Missing fire-rated wall continuity data.
• Missing or broken waterproofing system detail interfaces.
• Major unresolved structural-to-architectural clashes.
• Core MEP service distribution interferences.
• Non-compliance with building code or regulatory frameworks.
• Omission of essential localized accessibility mandates.
• Missing critical section views or detail callout indices.
• Reference to unapproved or non-specified building materials.
• Incorrect drawing revision or documentation package controls.
• Incomplete drawing packages or partial set submissions.

Approval Matrix

A weighted scoring model creates objectivity and transparency across the review workflow. The PDF uses the following decision ranges:

How Space AI Can Operationalize the Checklist

This checklist becomes more powerful when it is connected to project data. A construction intelligence platform can convert the 100 points into workflow steps, assigned review agents, evidence-backed checks, and audit trails.

For example, Space AI can support:

• Checklist routing by review agent, discipline, package, and due date.
• AI-assisted comparison between drawing sheets, transmittals, and registers.
• Issue extraction from review comments and redlines.
• BIM and document cross-reference checks for unresolved conflicts.
• Source-backed summaries for approvers before release decisions.
• Portfolio-level reporting on recurring submittal quality issues.

Conclusion

Architectural submittal review is not merely an administrative exercise. It is a structured process for validating design intent, ensuring regulatory compliance, coordinating multidisciplinary interfaces, and confirming constructability.

A robust 100-point checklist transforms reviews from subjective judgment into measurable, repeatable, and auditable assessment. It improves drawing quality, reduces RFIs, minimizes rework, and gives project teams greater confidence before drawings move into construction.

As projects become more complex and digitally connected, organizations are adopting automated systems that manage baseline checklist verification while specialized reviewers focus on higher-value technical and strategic risk mitigation.

The most effective architectural reviewer is not the one who approves drawings quickly. It is the one who approves them with absolute technical confidence.

Download the Source Guide

The source PDF for this article is available here: Architectural Drawing Review Guide.
